SATA to mSATA SSD adapter with PCI-e bracket for Intel Pinout


Add to Cart:

  • Description
  • Details
  • Reviews



CB963Fx9 Series is SATA to mSATA adapter, providing a standard 7 + 15 pin SATA Connector to HOST system and a 52pin mini PCI-e connector for mSATA SSD device. After assembled, it can run in variety of operating system. such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.


CB963Fx9 Series allows mSATA SSD as a system disk to boot OS directly, no need to install any drivers. CB963Fx9 dosen't affect the execution speed of SSD storage device.




1. Full and low profile PCI-e bracket included

2. Full Complaint with SATA revistion2.6

3. 3.3 Volt mSATA module SSD support

4. mini PCI-e SSD 52pin connector

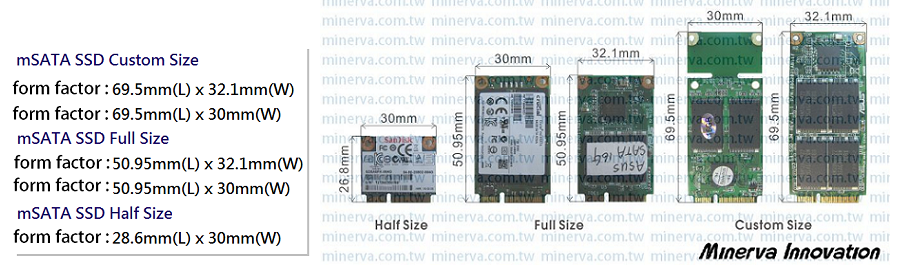

5. Support following form factors of mSATA SSD :






- Serial ATA Reversion 2.6 -------------------------------------------------------------> February 2007

- ATA/ATAPI-7 ------------------------------------------------------------------------------> April 2004

- PCI Express Mini Card Electromechanical Specification 1.2 ---------------->October 2007

- PCI Express Card Electromechanical Specification Revision 1.0 ---------->July 2002




The adapter connects to the Host PC in the same way that a 2.5 SFF SSD drive is connected using a SATA cable. It may be used in any application where a SFF SSD drive may be used:


1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls


support storage device


- Intel mSATA series SSD and compatible Storage Device

- Samsung PM800 series SSD and compatible Storage Device

- Toshiba mSATA SSD and compatible Storage Device


The following is adapter CB963Fx9 Series brand support :

Support Brand

SanSung MyDigital SSD
Toshiba Virtium
SanDisk AMP INC.
Renice Yuanyi
InnoDisk Active
Transcend PHISON SSD
OCZ Pretec
Runcore Lite-On
Kingfast Apacer
Kingspec Sunword
Super Talent Mach Xtreme
Kingston BIWIN

Matching m-SATA SSD cards you can find here.

  • Model: CB963Fx9/I
  • Shipping Weight: 0.15Kg
  • 1 Units in Stock
  • Manufactured by: Minerva Innovations
